Few machines announce themselves quite like a radial aircraft engine. Before the aeroplane moves, there is the slow turn of the propeller, a cough from one cylinder, then another, and finally a deep thunder that settles into a purposeful rhythm. Oil, vibration and cooling fins are all part of the spectacle. Yet the radial is more than an evocative soundtrack: it is an elegant answer to the problem of producing reliable power in the air.
For much of aviation’s formative period, radial aircraft engines powered everything from airliners and trainers to bombers, fighters and rugged utility aircraft. Their circular layout became a defining mechanical signature of twentieth-century flight. Here is how it works, why it succeeded and why enthusiasts still find it irresistible.
What is a radial aircraft engine?

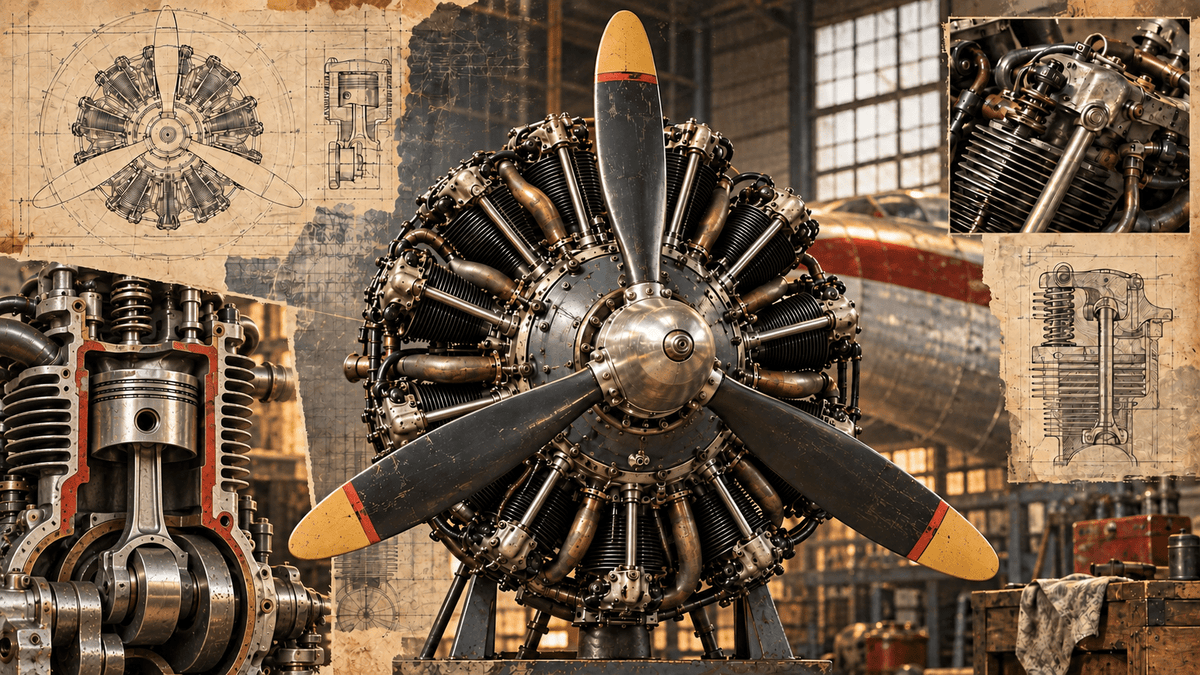

A radial is a piston engine whose cylinders are arranged around a central crankcase like the spokes of a wheel. The crankshaft sits in the middle, while each cylinder projects outwards into the airflow. A single-row engine has one ring of cylinders; larger designs may stack two or more rows behind one another.
Most classic radials are air-cooled. Prominent fins cast into each cylinder increase its surface area, helping heat pass into air directed around the engine by baffles and a carefully shaped cowling.
This architecture is instantly recognisable, which is why it works so well on the Radial Engine Camberline Logo T-shirt and matching radial-engine aviation hoodie. The circle of finned cylinders is the machine’s defining structure.
How does a radial engine work?
A conventional radial follows the familiar four-stroke cycle: induction, compression, power and exhaust. Fuel and air enter a cylinder, the piston compresses the mixture, ignition drives the piston down and the exhaust gases are expelled. The clever part is how pistons arranged in a circle deliver their effort to one crankshaft.
The master-and-articulating rod system
A typical radial uses one master connecting rod attached directly to a crankpin. The remaining pistons connect to articulating rods pinned around the large end of that master rod. This allows every piston to turn the same crankshaft without needing a separate crankpin for each cylinder.
The pistons do not all follow perfectly identical paths, but the arrangement is short, strong and well suited to a large-diameter engine. It also avoids the long crankshaft that a comparable inline multi-cylinder engine would require.
Why single-row radials usually have an odd number of cylinders
A four-stroke engine completes its power cycle in two crankshaft revolutions. In a single-row radial, an odd number of cylinders allows the firing order to step evenly around the circle. On a nine-cylinder engine, the spark can effectively visit every other cylinder before returning to the start.
This distributes combustion events around the engine, helping smooth the torque and avoid repeated heat in adjacent cylinders. Five-, seven- and nine-cylinder layouts therefore became familiar. A multi-row engine can have an even total, such as 14 or 18 cylinders, while retaining an odd number in each row.
Cooling, lubrication and starting
Putting the cylinders in the airstream is one of the radial’s strengths, but airflow still needs managing. On a multi-row design, front cylinders can shield those behind, so cowlings, baffles and cooling flaps matter greatly.
Radials also have a reputation for dripping oil. While an engine stands, oil can migrate towards the lower cylinders under gravity. Ground crews follow strict pre-start procedures on large historic engines because incompressible liquid trapped in a cylinder can cause hydraulic lock and serious damage. The familiar start-up smoke is atmospheric, but it also hints at the mechanical care these engines demand.
Why did radial engines become so important?
Early designers needed engines that were powerful, relatively light and dependable. The radial layout answered convincingly. Its short crankcase was structurally stiff, its cylinders were accessible for maintenance and air cooling avoided the radiators, coolant and pipework of a liquid-cooled installation.
During the 1920s, 1930s and 1940s, manufacturers developed modest single-row units into immensely powerful twin-row engines. Pratt & Whitney’s Wasp family, Wright’s Cyclone series and British designs such as the Bristol Hercules became associated with landmark aircraft.
The Douglas DC-3 showed how dependable twin radial power could transform airline and transport operations. The Boeing B-17 relied on four Wright Cyclones, while the rugged Antonov An-2 used a nine-cylinder Shvetsov ASh-62 derivative. These were very different aeroplanes, but each benefited from an engine layout made for sustained work.
The advantages of the radial layout
- Power-to-weight potential: substantial displacement and effective cooling could be packaged around a compact crankcase.
- Mechanical robustness: a short crankshaft and stout central structure suited high loads.
- No liquid-cooling system: there were no radiators or coolant circuits to leak, freeze or suffer damage.
- Maintenance access: cylinders and valve gear were comparatively exposed and could often be serviced individually.
- Survivability: some damage might not cause immediate total failure, depending on its nature.
Those qualities suited military, transport and utility aircraft operating far from ideal workshops. More of that practical engineering heritage appears in Camberline’s General Aviation collection.
What were the drawbacks?
The broad circle that makes a radial easy to recognise also creates a large frontal area. An exposed engine produces considerable drag, while an effective cowling adds complexity. Multi-row engines create further cooling challenges because rear cylinders sit in disturbed, heated air.
Liquid-cooled inline and V engines offered a narrower frontal profile where speed and a slim fuselage mattered. Later, gas turbines delivered far greater power and high-altitude performance. By the post-war era, piston radials were gradually displaced from front-line and commercial roles, although many continued working for decades.
Why aviation enthusiasts still love radial engines
The sound has a physical presence
A large radial does not merely make noise. Distinct exhaust pulses, substantial displacement and the load of a large propeller create a layered beat that can be felt through the airframe and the ground. Each engine type has its own cadence, especially during start-up and at low power.
The mechanism is visible
A radial wears its engineering on the outside. Cooling fins, pushrod tubes, ignition harnesses, exhaust stubs and oil lines form an honest mechanical landscape. Even beneath a cowling, the circular arrangement remains legible.
They connect living aircraft with history
Warbirds, classic transports and utility aircraft keep radial engines from becoming static museum pieces. Seeing one fly turns engineering history into a sensory experience: the smoke clears, every cylinder finds its rhythm and a machine designed generations ago pulls an aeroplane into the sky again.
That living connection runs through Camberline’s wider Aviation collection: not nostalgia for its own sake, but respect for machines whose form was shaped directly by purpose.
Radial engine or rotary engine?
The terms are often confused. In a radial engine, the crankcase and cylinders stay fixed to the aircraft while the crankshaft turns the propeller. In the rotary engines used on many First World War aircraft, the crankshaft was fixed and the entire cylinder block rotated with the propeller.
Both put cylinders in a circle, but their behaviour is very different. Rotary engines offered useful cooling and power for their time, yet their rotating mass, oil consumption and gyroscopic effects imposed severe limitations. The fixed radial became the more enduring arrangement.
Frequently asked questions
How many cylinders does a radial engine have?
Single-row aircraft radials commonly use five, seven or nine cylinders. Multi-row engines often combine two rows to produce 14 or 18 cylinders, though other layouts have existed.
Why do radial engines smoke when they start?
Oil can collect in the lower parts of the engine while it is parked. Some may enter combustion during start-up, creating the characteristic cloud. Correct pre-start checks are essential because excess oil in a cylinder can cause hydraulic lock.
Are radial engines still used today?
Yes, particularly in preserved warbirds, classic transports, agricultural and utility aircraft, and a small number of specialist or newly manufactured engines. Turbines and horizontally opposed piston engines now dominate most roles radials once filled.
Are radial engines reliable?
Well-maintained radials earned a strong reputation for durability, but they are not simple to own. Reliability depends on correct lubrication, cooling, ignition, operating technique and specialist maintenance.
Where can I learn more about piston-engine systems?
The FAA Pilot’s Handbook of Aeronautical Knowledge provides a useful technical grounding, while air museums and flying collections offer the best chance to study surviving radial-powered aircraft at close range.
A machine whose shape tells its story
The radial engine’s appeal begins with function. Its cylinders form a circle because that arrangement provides a compact, strong and cool-running route to serious power. Everything enthusiasts admire — the sculptural shape, start-up smoke, heavy pulse and exposed hardware — follows from engineering decisions made for flight.
That is why radial aircraft engines remain compelling long after turbines took over their principal roles. They make combustion visible, history audible and mechanical purpose impossible to ignore.
